Electrical panel upgrades in Calgary: four before-and-after panels, from $2,800
February 2025 to September 2026 · Residential · Panel upgrades · Calgary
Four Calgary homes, four electrical panel upgrades by Koop Electrical between February 2025 and September 2026. In each one an old panel came out, a new breaker panel went in, the panel area was cleaned up, every circuit in the house was traced and labelled, and the work was inspected under a City of Calgary permit. Panel upgrades with Koop Electrical start at $2,800.
At a glance
Client: Five homeowners across Calgary; Maple Ridge, Parkland, Willow Park, Acadia, and Triwood
Job type: Electrical panel replacement upgraded service 100-200amps
Dates: February 2025; January 2026; August 2026; September 2026
Scope, each job: New panel and main breaker; new breakers, with AFCI and GFCI protection where the code now requires it; every cable re-terminated and dressed; bonding checked; typed circuit directory; City of Calgary electrical permit and inspection; ENMAX disconnect where the meter had to be pulled
Cost: From $2,800 to $5500
Why people replace a panel
Four reasons come up over and over. There is no room for another breaker, and the EV charger, hot tub or suite needs one. The panel is a type insurers flag: Federal Pioneer Stab-lok, Sylvania or Zinsco, a fuse box, or a 60 amp service. Breakers trip for no reason, or a breaker never trips when it should. Or the house is being renovated and the panel is the last 1970s thing left in it. Some insurers charge more for a home with one of the flagged panels, and some will not cover it until it is replaced; a new panel with a permit and an inspection on file ends that conversation. Ask your broker what yours says.
The four jobs

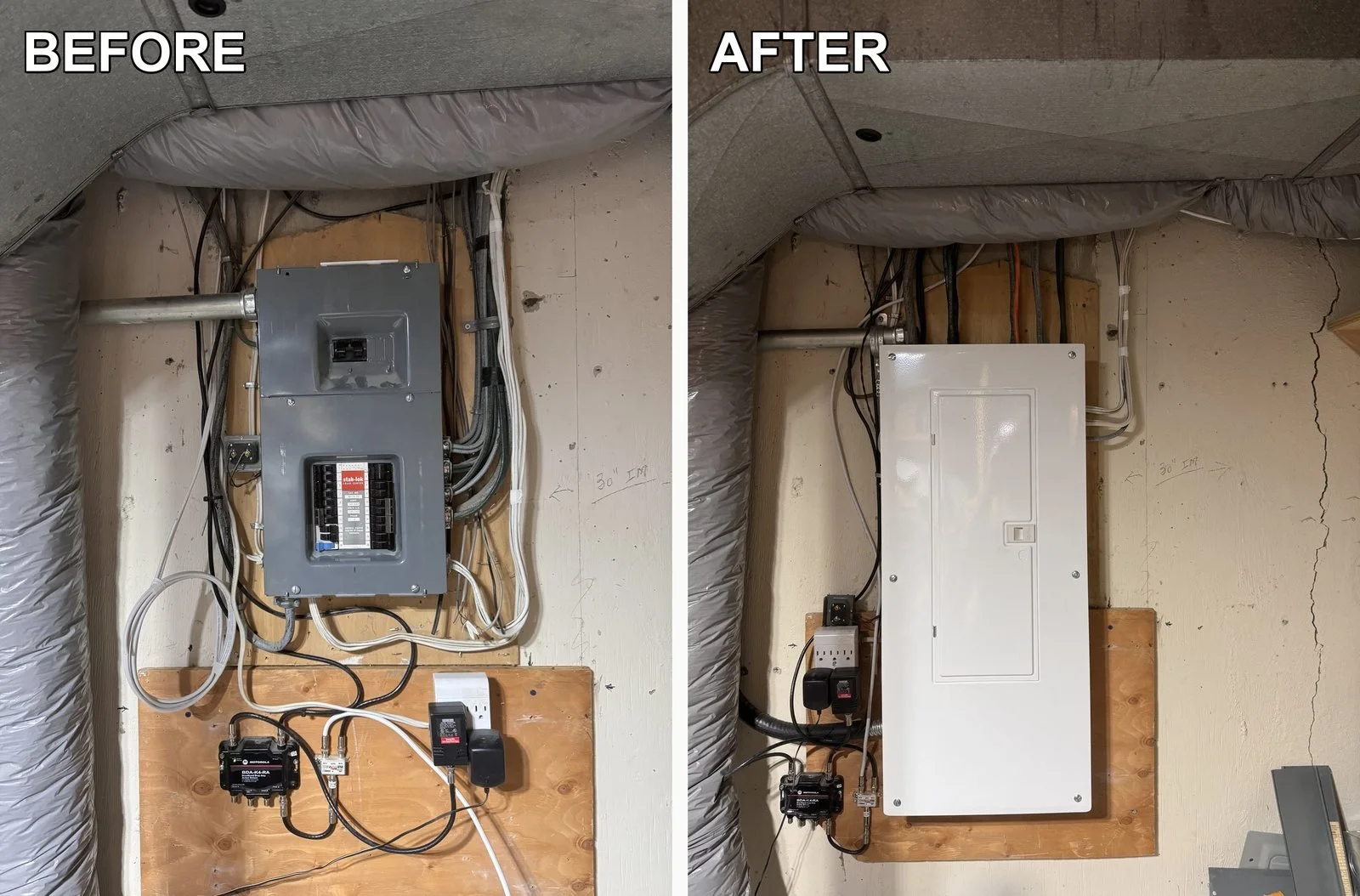

Job 1 (February 2025). Before: A grey Federal Pioneer Stab-lok panel in a basement utility corner, cables entering from every direction, the cable-TV splitter hanging below it. After: New white panel on a fresh backboard, cables dressed into it, the low-voltage gear moved onto its own board.

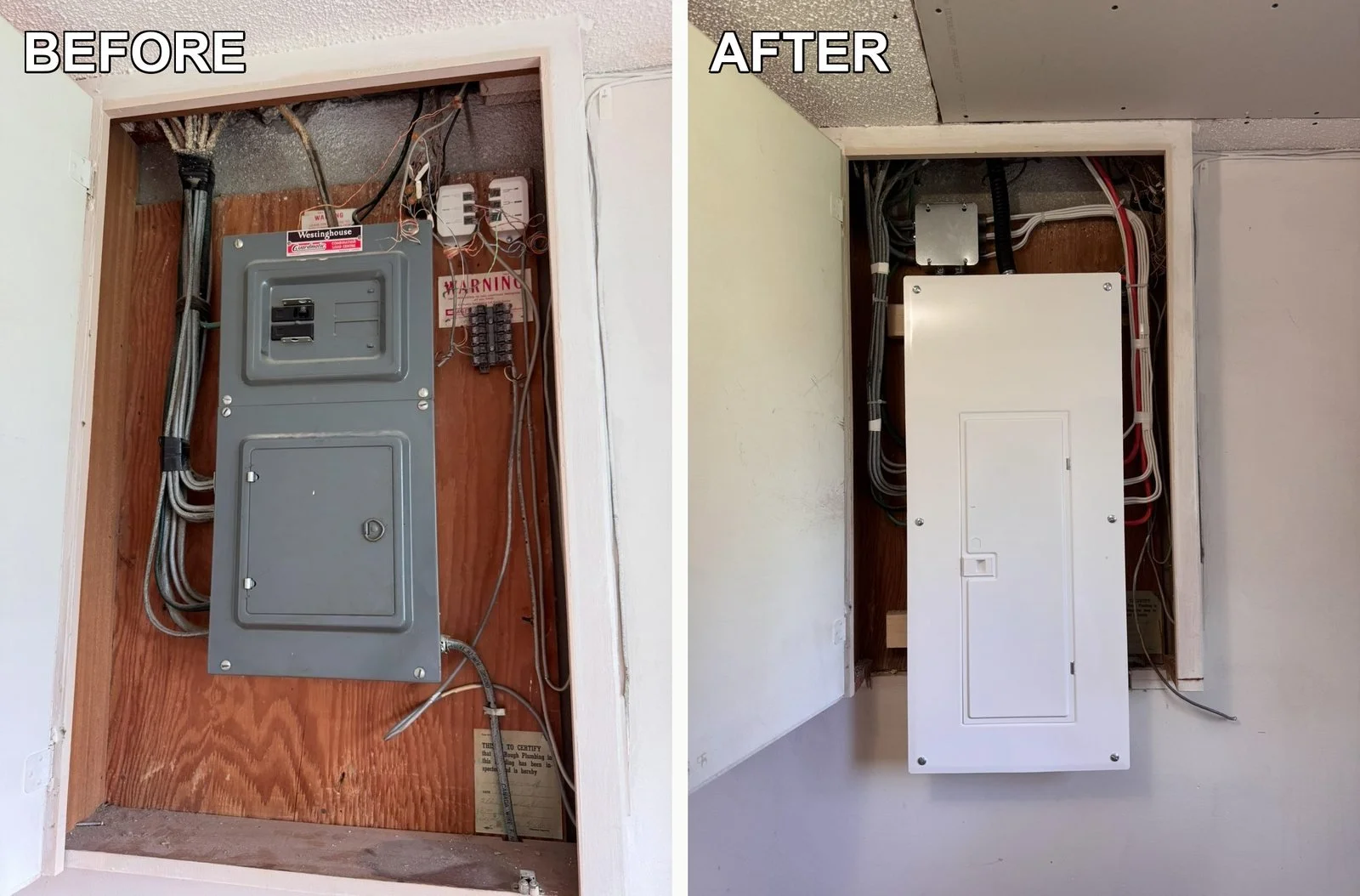

Job 2 (January 2026). Before: An old grey panel inside a hallway closet, open splices on the board beside it and a faded warning label. After: New panel in the same closet, the board cleaned up, nothing exposed.

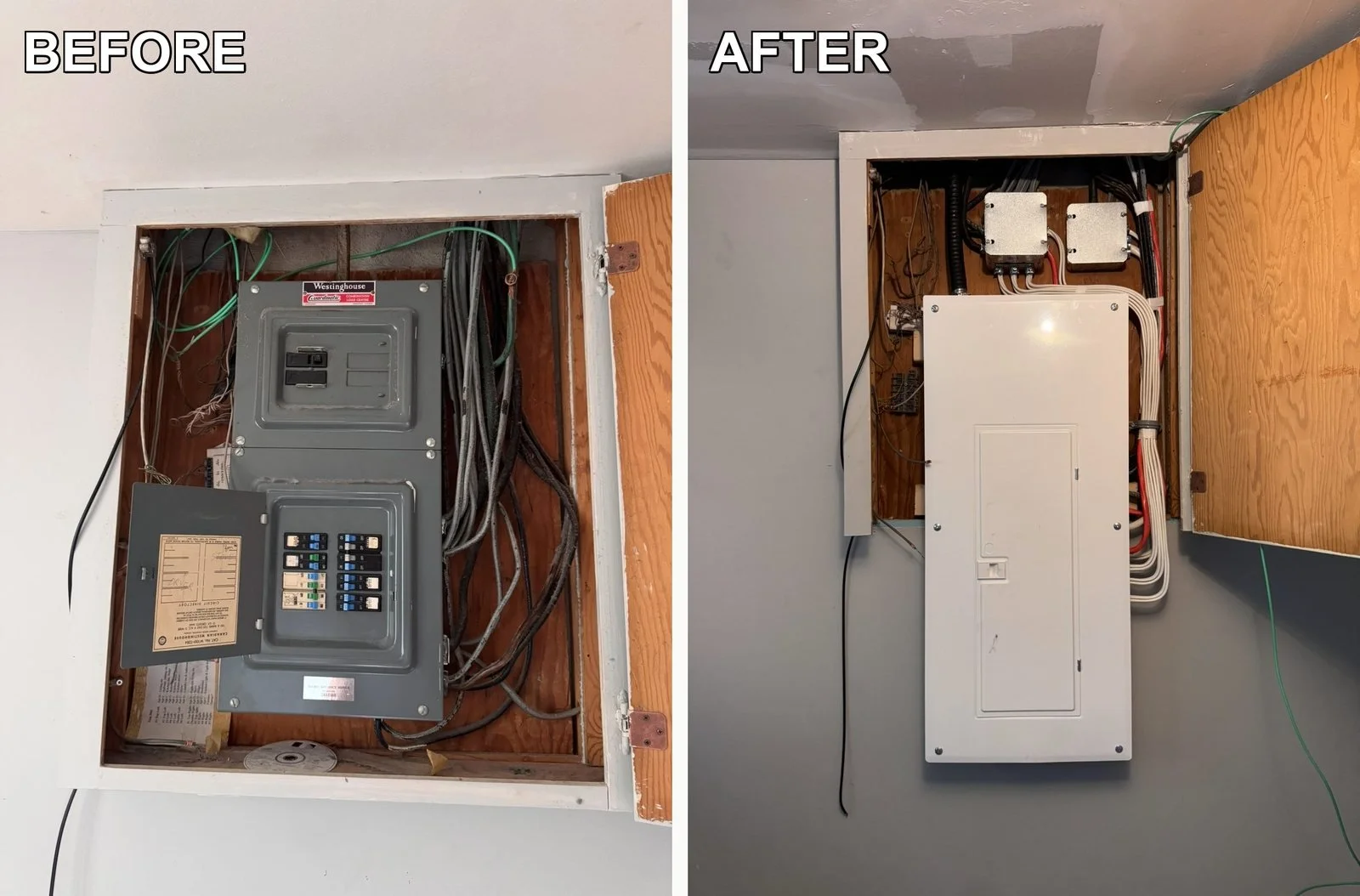

Job 3 (August 2026). Before: A grey panel with the original hand-written circuit sheet taped inside the door, a junction box of splices above. After: New panel, the splices in proper boxes, a typed directory.

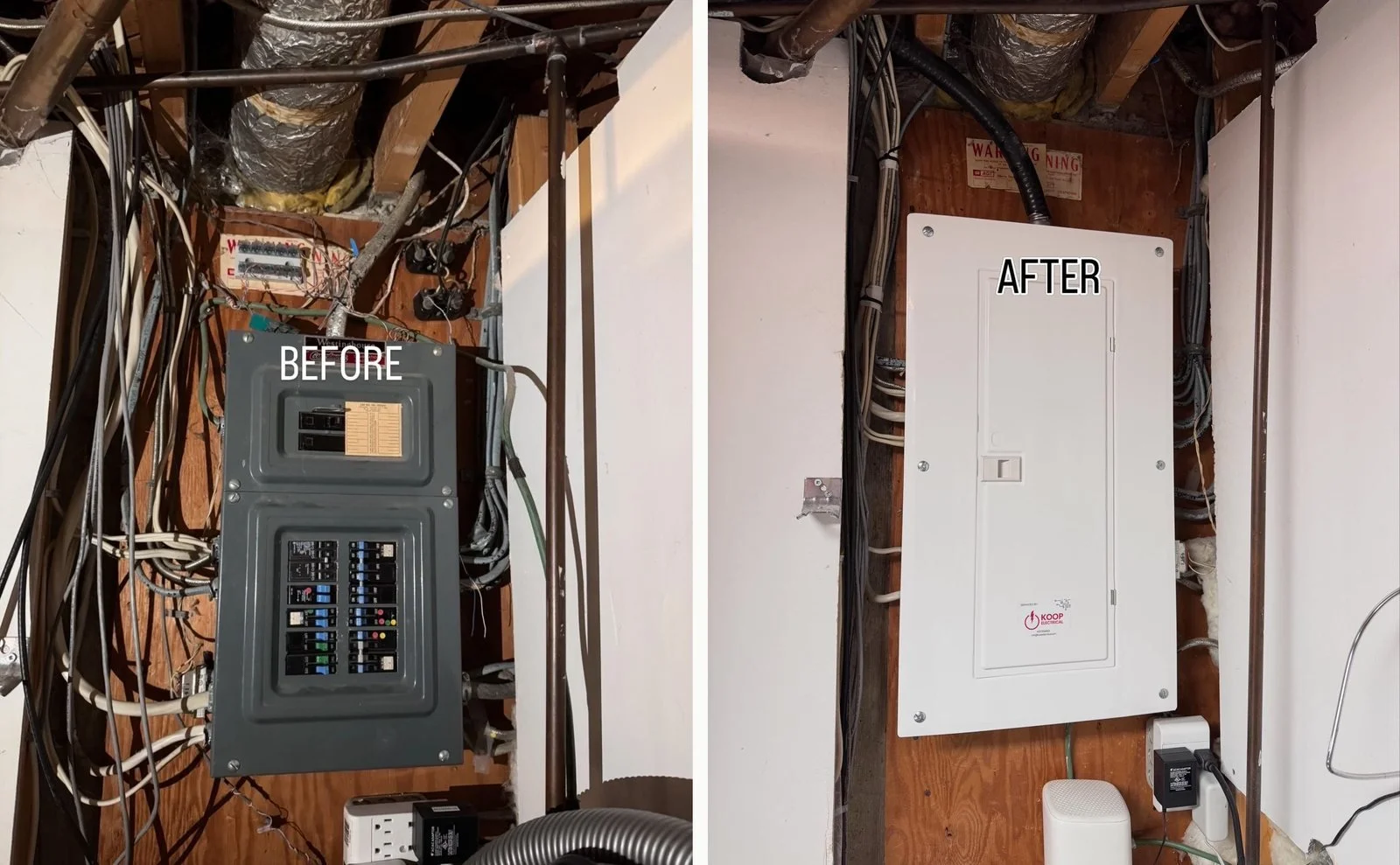

Job 4 (September 2026). Before: A panel at the end of a tangle of cables running across the basement ceiling. After: New panel with the cables re-routed and clipped, a Koop Electrical label on the door.
What a Koop panel upgrade includes
A new panel and main breaker sized to your service, with a main you can actually turn off.
New breakers, including AFCI and GFCI breakers where the current code requires them.
Every cable re-terminated and dressed, splices moved into proper boxes, the backboard replaced if it needs it.
Bonding and grounding checked and brought up to code.
Every circuit in the house traced and labelled in a typed directory on the door, so the next person can find the bedroom breaker without flipping ten of them.
The City of Calgary electrical permit and the inspection, and the ENMAX disconnect if the meter has to come off.
The result
Four houses with a panel nobody has to apologize for, a directory that is right, and an inspection sticker inside the door. Peace of mind is the phrase the owners use.
Panel upgrades in Calgary
A residential panel upgrade with Koop Electrical costs $2,800 to $4,500, depending on amperage and where the panel sits. Upgrading from 100 amps to 200 amps is our most common request, usually driven by an EV charger, a suite or a renovation; where the utility service itself has to grow, see our Dover project for what that involves. Estimates are free: call 403-702-6053 or use the contact form.
